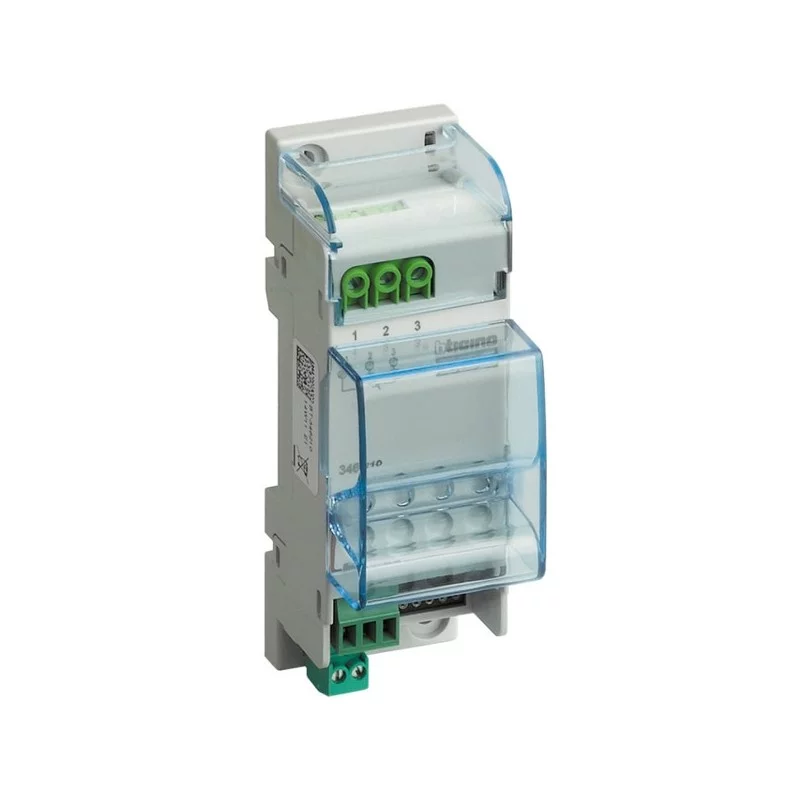

Relais BUS pour fonctions auxiliaires - 2 fils

Référence : 346210 Bticino EAN : 8005543520970

Photo(s) non contractuelle(s)

Relais bus pour fonctions auxiliaires Bticino.

Il permet de gérer les fonctions d'éclairage et d'automatisme.

  • 2 modules DIN
  • 6A résistif

175,34€ ttc
Expédition sous 1 à 2 semaines après commande
ajouter au panier
_
+
Payez en plusieurs fois

En achetant ce produit vous gagnez 176 DomoPoints

Relais BUS pour fonctions auxiliaires - 2 fils

Relais BUS pour fonctions auxiliaires - 2 fils

175,34€ ttc
ajouter au panier
_
+

Produits complémentaires

Boîtier mural en saillie pour platine Linea 300 Bticino - De 2 à 4 appels
Bticino
Réf. 308021
Expédition sous 24-72h
Boîtier mural en saillie pour platine Linea 300 Bticino - De 2 à 4...
151,87€ ttc
ajouter au panier
_
+
Boîtier mural en saillie pour platine Linea 300 Bticino - De 5 à 8 appels
Bticino
Réf. 308022
Expédition sous 24-72h
Boîtier mural en saillie pour platine Linea 300 Bticino - De 5 à 8...
190,72€ ttc
ajouter au panier
_
+
Boîtier mural en saillie pour platine Linea 300 Bticino - De 9 à 12 appels
Bticino
Réf. 308023
Expédition sous 1 à 2 semaines après commande
Boîtier mural en saillie pour platine Linea 300 Bticino - De 9 à 12...
214,04€ ttc
ajouter au panier
_
+
Platine monobloc antivandale Linea 300 Bticino - 5 à 8 boutons - façade alu
Bticino
Réf. 308002
Expédition sous 1 à 2 semaines après commande
Platine monobloc antivandale Linea 300 Bticino - 5 à 8 boutons -...
960,88€ ttc
ajouter au panier
_
+
Platine monobloc antivandale Linea 300 Bticino - 9 à 12 boutons - façade alu
Bticino
Réf. 308003
Expédition sous 1 à 2 semaines après commande
Platine monobloc antivandale Linea 300 Bticino - 9 à 12 boutons -...
1146,62€ ttc
ajouter au panier
_
+
Platine monobloc antivandale Linea 300 Bticino - 13 à 20 boutons - Façade alu
Bticino
Réf. 308004
Expédition sous 1 à 2 semaines après commande
Platine monobloc antivandale Linea 300 Bticino - 13 à 20 boutons -...
1366,24€ ttc
ajouter au panier
_
+
Platine monobloc antivandale Linea 300 Bticino - 21 à 32 boutons - Façade alu
Bticino
Réf. 308005
Expédition sous 1 à 2 semaines après commande
Platine monobloc antivandale Linea 300 Bticino - 21 à 32 boutons -...
1651,56€ ttc
ajouter au panier
_
+
Platine monobloc antivandale Linea 300 Bticino - 2 à 4 boutons - façade alu
Bticino
Réf. 308001
Expédition sous 1 à 2 semaines après commande
Platine monobloc antivandale Linea 300 Bticino - 2 à 4 boutons -...
916,61€ ttc
ajouter au panier
_
+
Poste intérieur visiophone Bticino Classe 100 - Vidéo couleur- écran 5”- mains-libres
Bticino
Réf. BT344662
Expédition sous 24-72h
Poste intérieur visiophone Bticino Classe 100 - Vidéo couleur-...
407,34€ ttc
ajouter au panier
_
+
Documents et notices

346210 - Relais BUS Bticino

Voir le document

346210 - Relais Bticino

Voir le document
Caractéristiques

Nombre de pas de 9mm

2

Intensité (Ampérage)

6

Description

Caractéristiques du relais bus pour fonctions auxiliaires Bticino :

  • Utilisation :
    • Pour fonctions auxiliaires (éclairage, automatisme)
    • 2 modules DIN
    • Fonction : temporisé et télérupteur
    • En variante, le relais peut également être utilisé lors d’un appel comme poste d‘intérieur avec une alimentation électrique séparée (MOD: cavalier de configuration SLA)
  • Données générales :
    • Alimenté par le SCS BUS : 18 – 27 Vdc
    • Absorption en stand-by : 3,5 mA
    • Absorption maximale en fonctionnement : 25 mA
    • Température de fonctionnement : 5 – 40 °C
    • Contact de sortie : 230 Vac - 6 A resistif - 2 A inductif
